Description of PVC Profile Extrusion Line:
✔ Rigid or flexible profiles, like gasket, can be extruded.
✔ We supply complete solutions for the production of rigid and foam PVC technical profiles, including co-extrusion options, with various optical effects.
✔ Additional features are direct and post co-extrusion of soft PVC elements like gaskets, lips and other components.
✔ We can offer the complete line of single and twin-screw extrusion systems for the PVC profile production.
Features of PVC Profile Extrusion Line:
Material:
|
PVC
|
Width range:
|
1200 - 3000mm
|
Sheet thickness range:
|
2 - 16mm
|
Layers structure:
|
Monolayer, 2-layer and 3-layer and more
|
Product geometry:
|
From 2 to 6 walls
|
Output range:
|
300 - 700kg/h
|
Description of PVC Profile Extrusion Line:

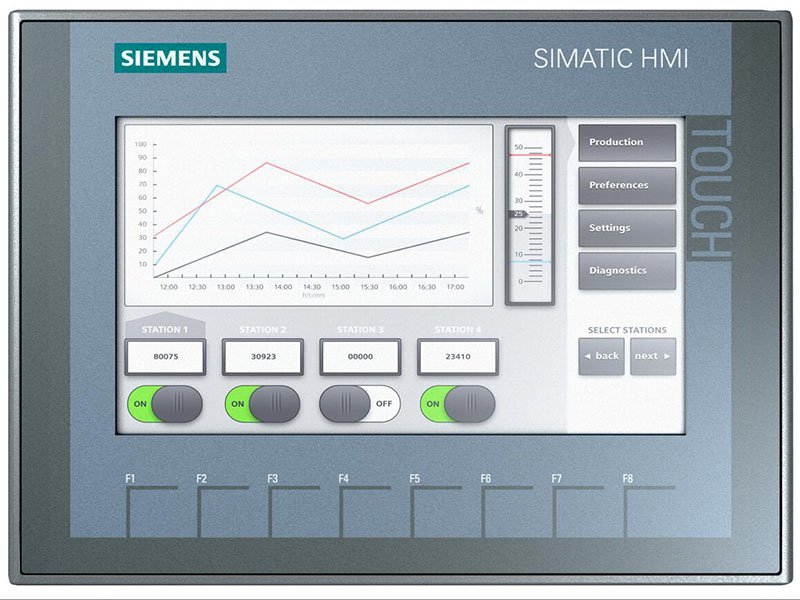

Siemens PLC Control System
✔ Siemens PLC + HMI Control to assure the machine running precision and easy operation
✔ Intelligent & centralized control
✔ Automatic preheating
✔ Diagnose function
✔ Remote monitoring
✔ Intelligent alarm system
✔ Formula management

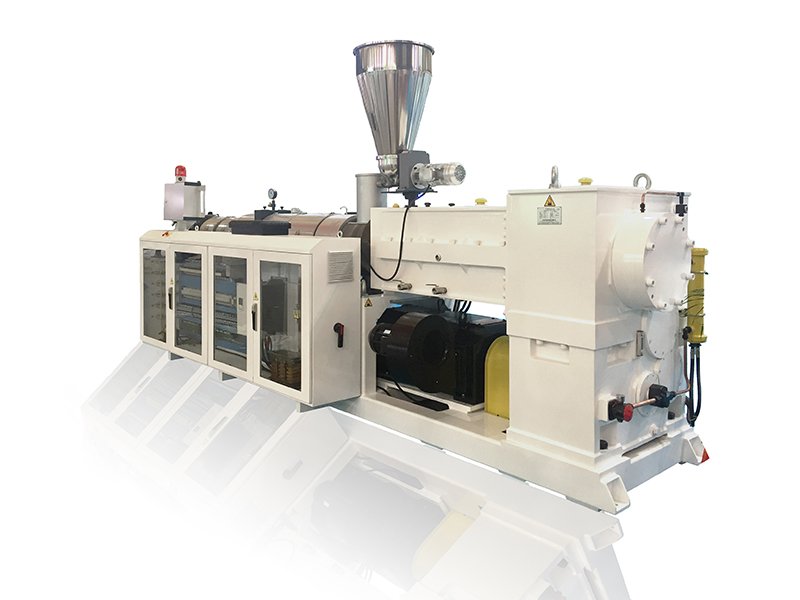

WSJZ Series Conical Twin Screw Extruder
✔ We provide SJZ-51 - SJZ92 conical type twin screw extruder of different models for customer needs.

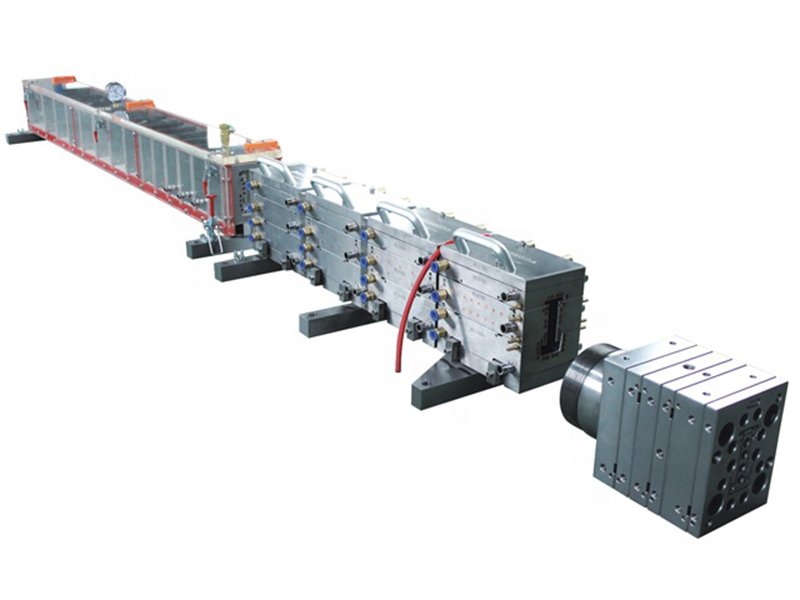

Die Head for Profile
✔ Rigid or flexible profiles, like gasket.
✔ Rigid and foam PVC technical profiles, including co-extrusion options, with various optical effects.
✔ Co-extrusion of soft PVC elements like gaskets, lips and other components

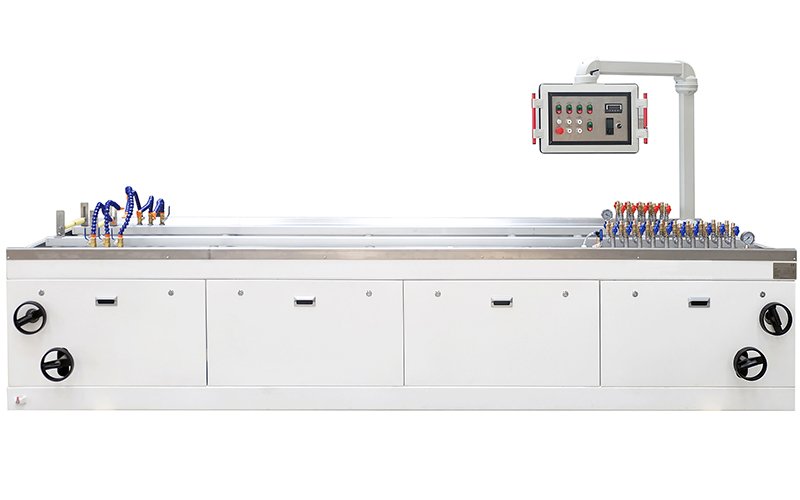

Calibration Table
✔ Material: Stainless steel
✔ Adjustable in six direction: Right-Lift, Forward-Back, Up-Down
✔ Suitable for wide range of profile shapes: in an easy and efficient way ensuring precise calibration and fast cooling.

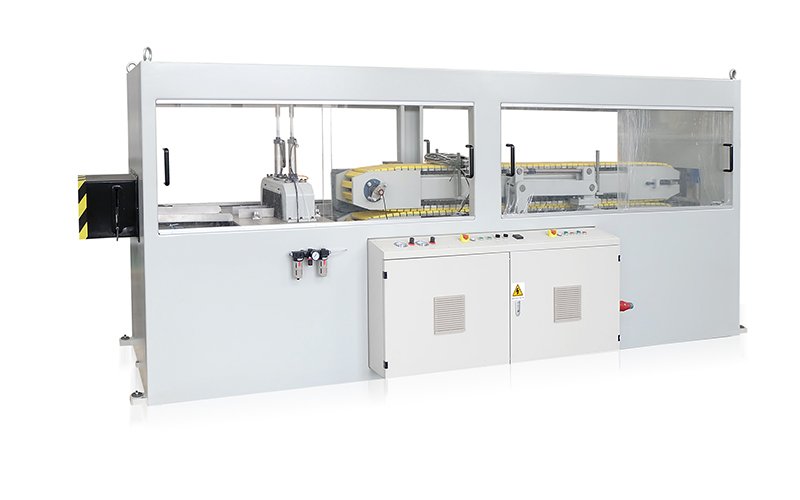

Haul Off and Cutting Machine
✔ Haul off type: Double tracks
✔ Material of Pad: Rubber
✔ Clamping method: Pneumatic or Electric
✔ This New designed haul off machine is sturdy and very reliable.
✔ They are available with special shape pads and tracks, according to the type of extruded profile.
✔ Cutting Method: Saw cutting
✔ Vertical and Horizontal Cutting: Vertical cutters for small- and medium-sized profiles or horizontal cutters for profiles wider than 300 mm.

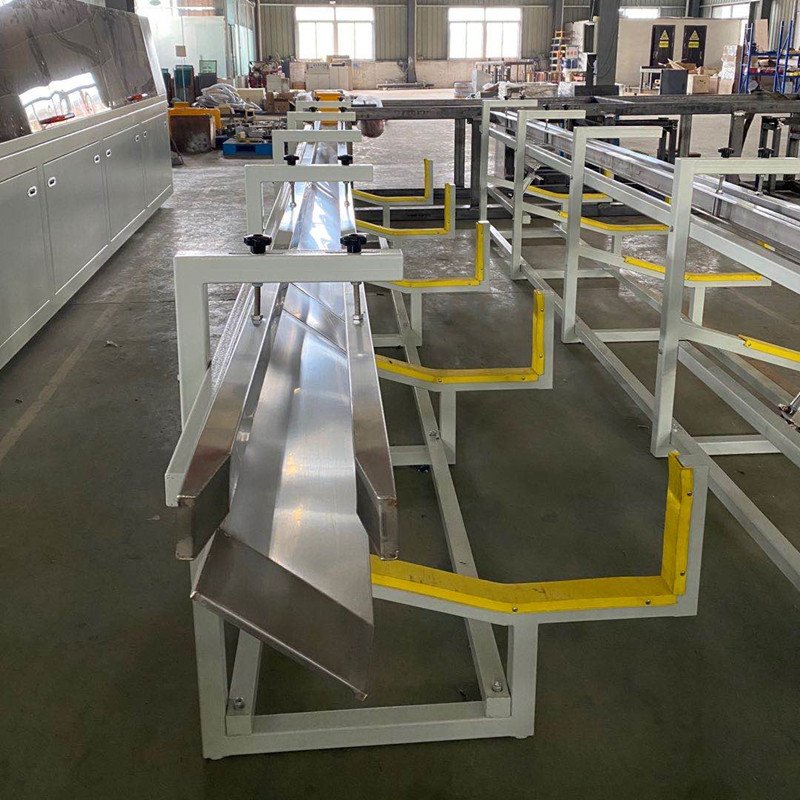

Stacking device
✔ Material: 304L Stainless steel

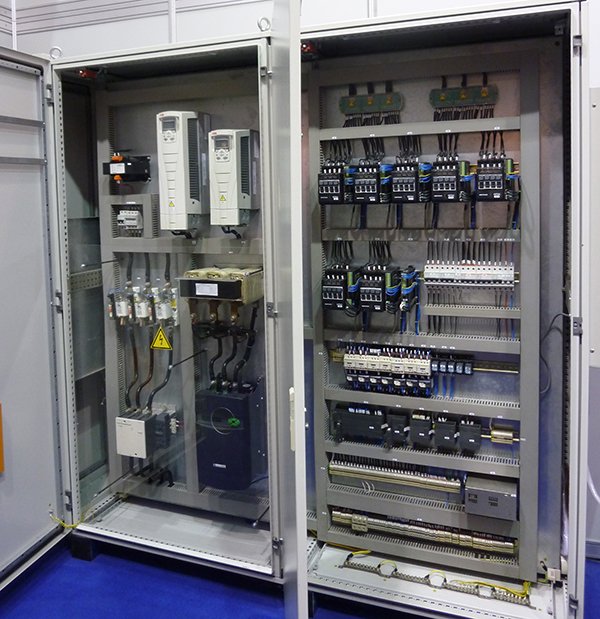

Control Panel
✔ Siemens, ABB, Omron, Schneider, Dynisco etc
