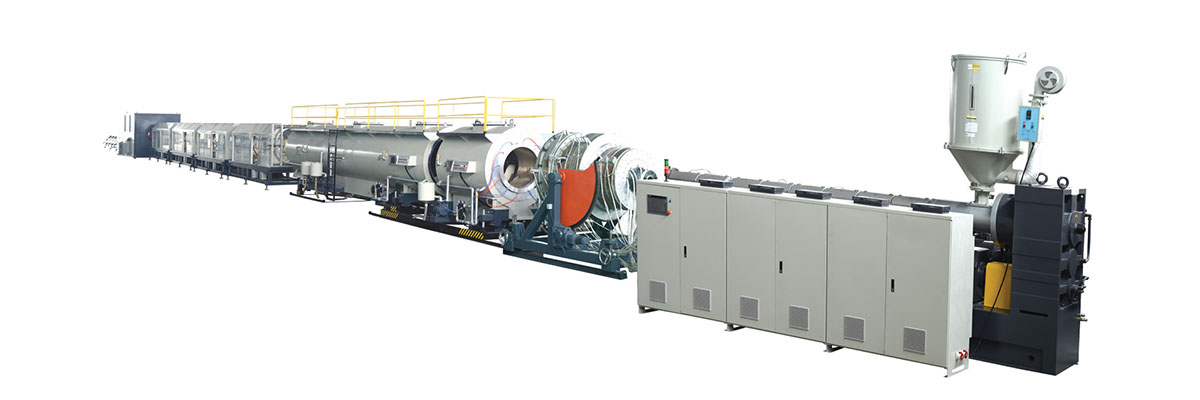

Description of PE PP PA Pipe Extrusion Line
1.To provide professional plane for turn-key project with printer, mixer, Shredder and crusher.
2.There’s PLC+HMI control available for more convenient operation.
3.The Pipes what can produce:
PE:
- under pressure pipes
- water transportation and distribution
- gas distribution systems
- irrigation plants
- dripper irrigation systems
- discharge pipes
- protection lines for electric cables
- pipes with low frction inner sheathing
- 2 and 3-outlet pipes
- bi-oriented pipes for the production of shotgun shells
PP:
- underground discharge pipelines
- discharge piping for building dumping, also sound absorbent
- distribution plants for hot sanitary water
- drainage plants
- industrial plants for corrosive products transportation
- pipes for flues
PEX:
- distribution plants for hot sanitary water
- traditional and floor heating
- heating plants for greenhouses
- geothermic plants
- distribution systems for district heating
PA:
- braking plants
- compressed air and vacuum plants
- pipes for the inner sliding of metallic parts, cable guide
- pipes for medium and low pressure oils and hydrocarbons
Features of PE PP PA Pipe Extrusion Line
Material:
|
PP PE PA PPR PEX
|
Cavities:
|
One /Two/Four cavity
|
Pipe diameter:
|
16 - 1600mm
|
Capacity:
|
120 - 2000kg/h
|
Main Parts details of PP PE PA Pipe Extrusion Line

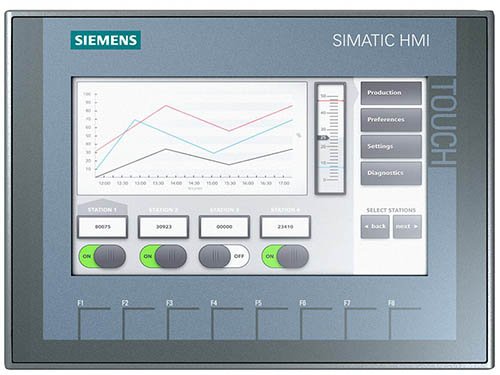

Siemens PLC Control System
✔ Siemens PLC + HMI Control to assure the machine running precision and easy operation
✔ Intelligent & centralized control
✔ Automatic preheating
✔ Diagnose function
✔ Remote monitoring
✔ Intelligent alarm system
✔ Formula management

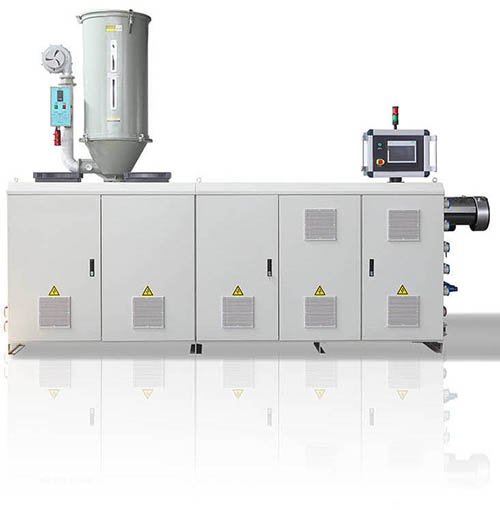

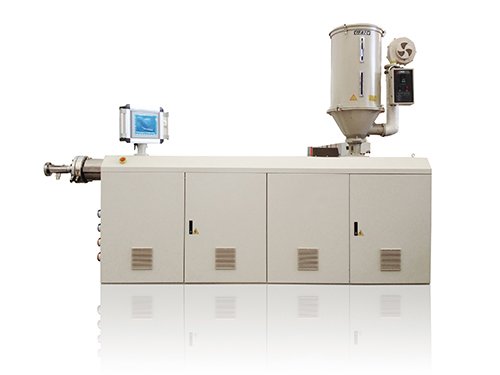

Extruder
✔ Material: 38CrMoAl Or Bimetallic
✔ Specified screw design for better material plasticizing &mixing effect, For high fllingn formula, bimetallic screw and barrel canguarantee perfect solution

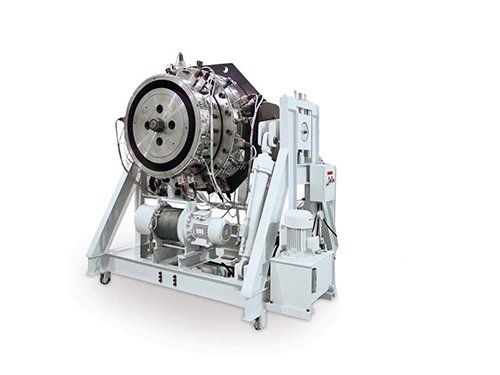

Die head
✔ Low resistance to melt flow to avoid a negative influence on the screw mixing action;
✔ Regular flow speed, without zones where material flows slower;
✔ Suitable shear stress on the wall of the flow channel, avoiding material deposits;
✔ Absence of high-shear zones with consequent energy dissipation (temperature increase), to stress the material the minimum possible;
✔ Pipe thickness uniformity

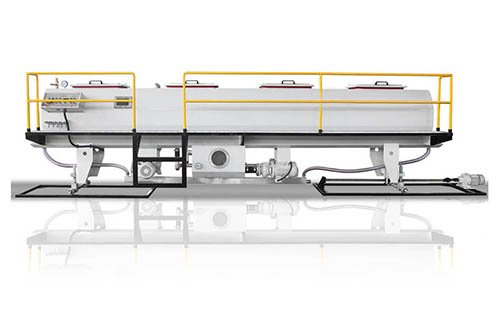

Vacuum Tank
✔ Clibration sleeves: Copper material and minimum friction
✔ Tank material: 304L Stainless steel
✔ Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and More efficient cooling
✔ Fast Diameter Changing
✔ Excellent Uniform Cooling
✔ Easy Vacuum Control
✔ Precise Flow Control
Water Cooling Tank
✔ Tank material: 304L Stainless steel
✔ Fast Diameter Changing
✔ Excellent Uniform Cooling
✔ Precise Flow Control

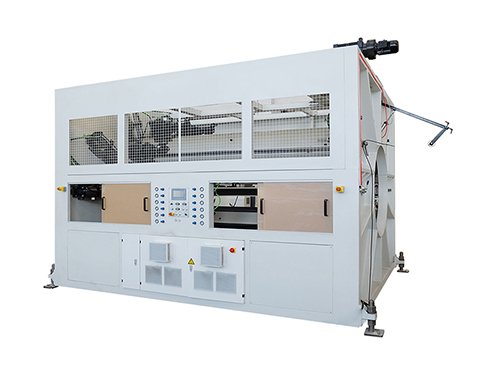

Haul Off Machine
✔ Independently driven caterpillars
✔ Energy efficient
✔ Accurate and consistent pulling
✔ Long caterpillar contact length
✔ Easy system for changing pads
✔ Strong Chassis construction for accurate and repeatable pulling

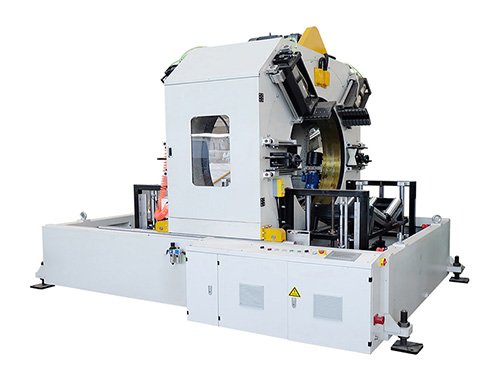

Cutter
✔ Precise Cutting
✔ Energy efficient
✔ Universal clamping system
✔ Electrical synchronization and CNC Control
✔ Hydraulic feeding of blade providing perfect cutting surface

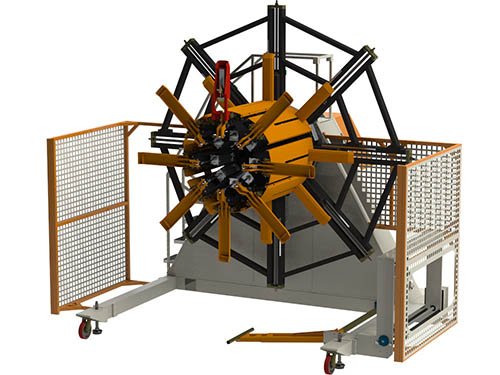

Coiler
✔ Qty of position: One or Two
✔ Automatic lining
✔ Pnumatic open and Close
Control Panel
✔ Siemens, ABB, Omron, Schneider, Dynisco etc
