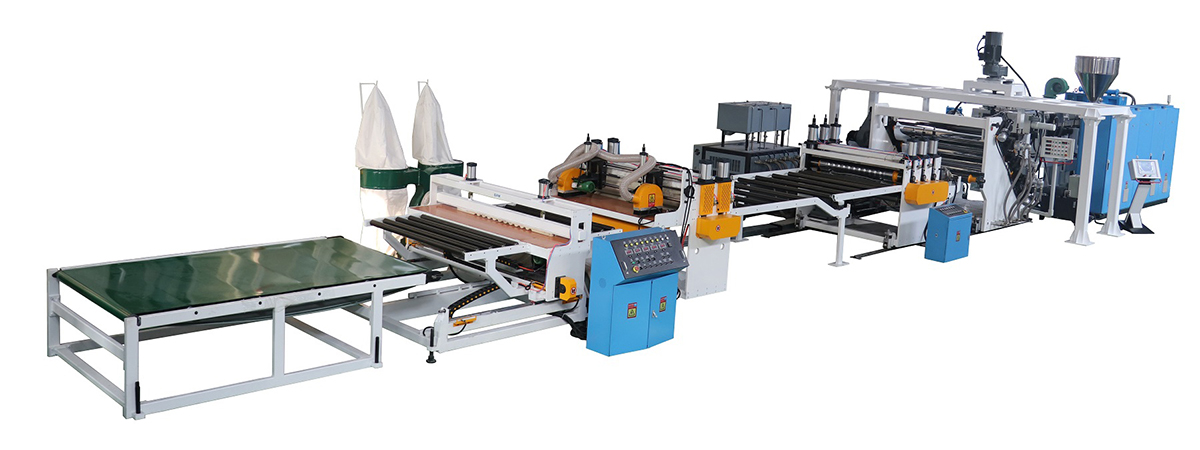

Description of Plastic Sheet Extrusion Line:
1.Used to produce plastic sheet with different kind of materials.
2.World brand famous pressure and temperature controllers to ensure the machine running in high accuracy
3.Experienced progressing skill to assure the high production efficiency and product quality
4.Siemens PLC control system, high automation, easy operation and machine maintenance to save more labor for customers
5.User friendly turn-key project (including know-how transfer)
Features of Plastic Sheet Extrusion Line
Material available:
|
PP, PE, PS, ABS, TPU, EVOH, PC, PMMA etc
|
Width range:
|
200 - 2000mm
|
Layers availabl
|
1/3/5/7/9 layers
|
Min. Sheet thickness:
|
0.25 - 5mm
|
Output range:
|
300-800kg/h or Customized
|
Main Parts details of Plastic Sheet Extrusion Line:

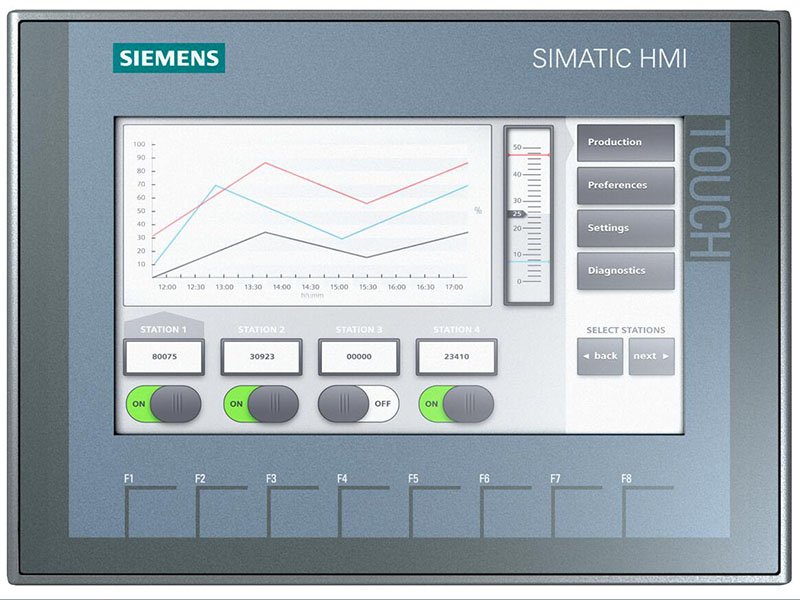

Siemens PLC Control System
✔ Siemens Touch + PLC control to assure the machine running precision and easy operation

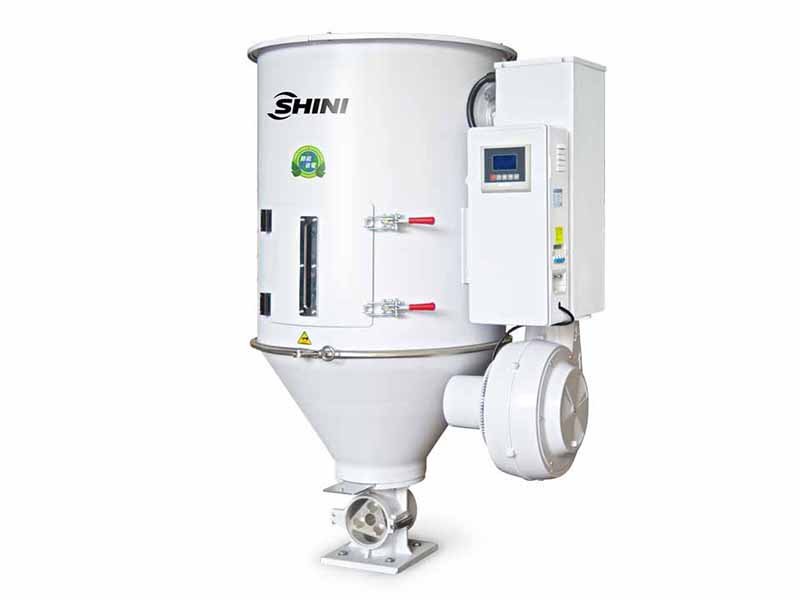

Drier Hopper
✔ SHD hopper dryers are used for drying hygroscopic plastics, such as PP, PE, PS and ABS etc., which can reach the highest drying temperature up to 160℃.
✔ In addition, multiple accessories are optional to realize different functions, such as recycling hot air and filtering metal impurities in the materials. With the floor stand, it makes floor mount of the machine available.

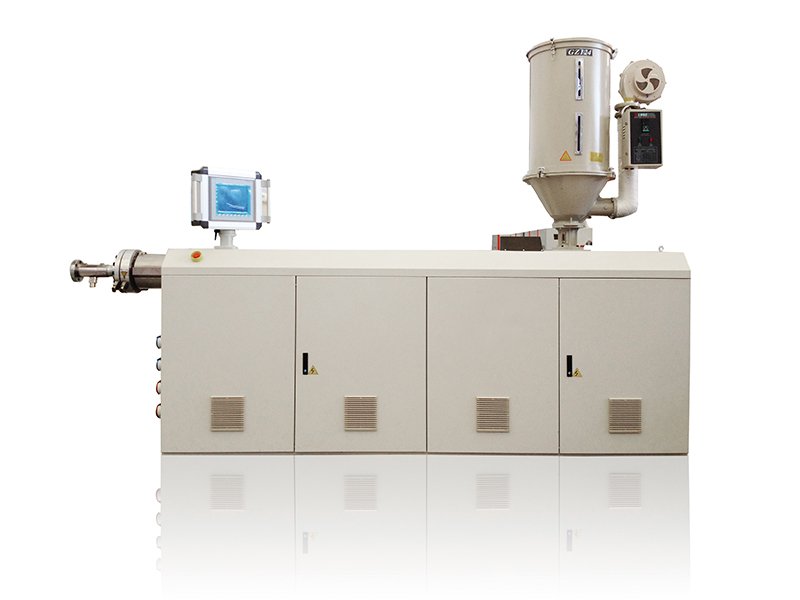

WSJ Series Single Screw Extruder
✔ Unique screw extruder design to ensure the high plasticilization
✔ High efficiency design to improve the production capacity
Screen Exchanger
✔ Hydrautic changing with double position

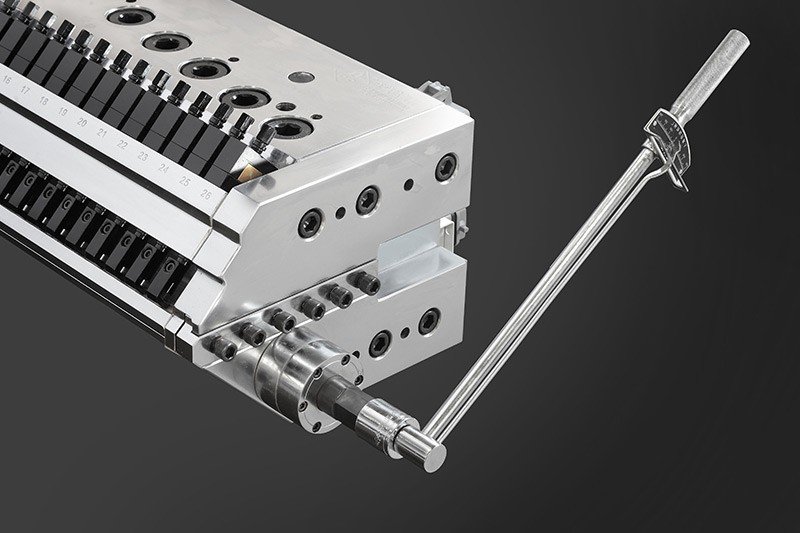

Feedblock and Flat die
✔ Feedblock suitable for multilayer sheet processing up to 9 layers.
✔ Flat die with manual or automatic thickness control.
✔ Internal deckling system available on request.

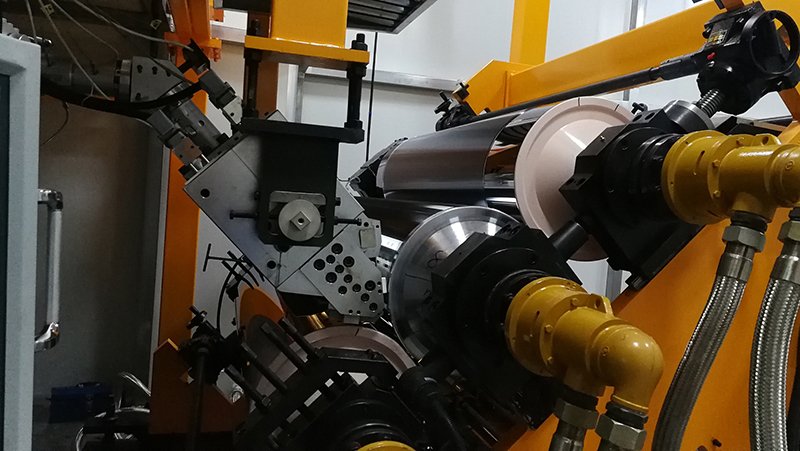

3-Roller Calender System
✔ Two types structure: Horizontal and L type
✔ Different diameters for inlet, middle and exit rolls: 350 - 500 mm
✔ High pressure clamping force.
✔ The rolls are independently driven by AC motor,Controlled by ABB inverter

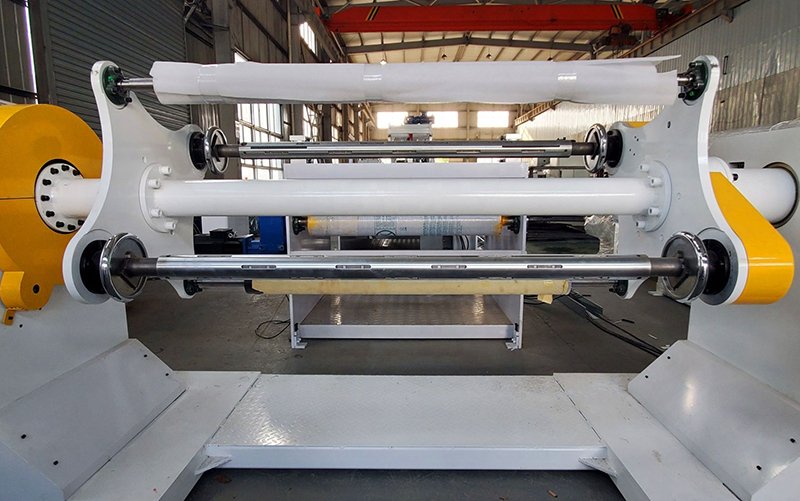

Winding Machine
✔ Double position winder, standard size roll diameter up to 600mm or Customized.

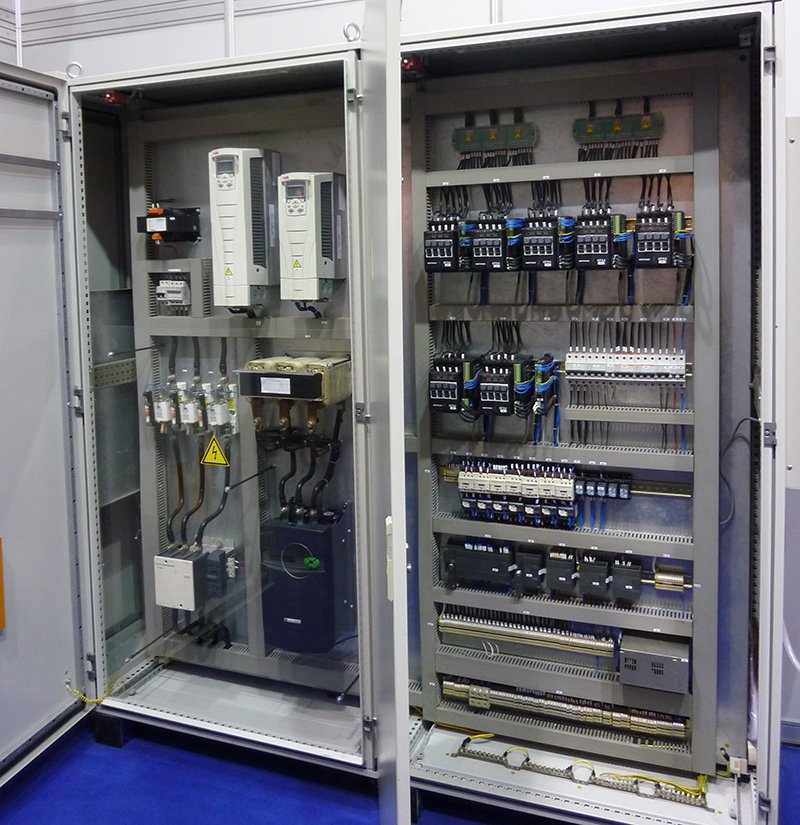

Control Panel
✔ Siemens, ABB, Omron, Schneider, Dynisco etc
